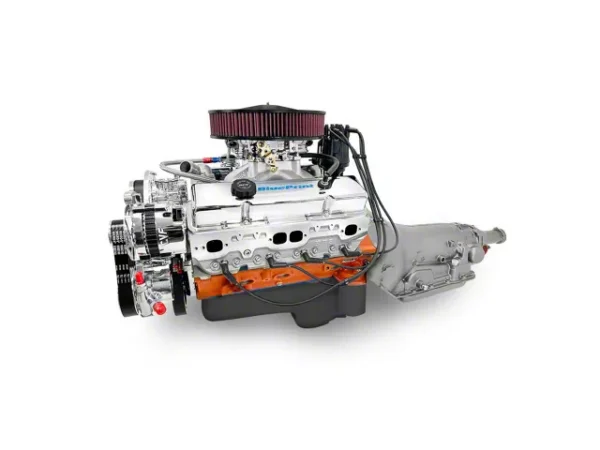

BluePrint Engines Standard Edition Builder Series Small Block Chevy ProSeries 427 C.I. 540 HP Fuel Injected Crate Engine and 700R4 Automatic Transmission with Polished Pulley Kit

Features

540 Horsepower / 535 Ft. Lbs. Torque
10.0:1 Compression Ratio
BluePrint Engines Aluminum Heads
BluePrint Engines Hydraulic Roller Cam
BluePrint Engines Forged Crank
BluePrint Engines Forged Pistons
High Strength Cast Iron Block Manufactured And Machined In The USA
Drilled And Tapped For Clutch Linkage
Mechanical Fuel Pump Provision
Passenger Side Dipstick
1-Piece Rear Main Seal
4-Bolt Main
4.125″ Bore
4.000″ Stroke Forged Steel Crankshaft
Forged 6.000″ Connecting Rods
Internally Balanced Front And Rear Rotating Assembly
Aluminum Cylinder Heads With 66cc Chamber
2.08″ Intake and 1.60″ Exhaust Valves
220cc Intake and 67cc Exhaust Runners
Hydraulic Roller Camshaft With .577 Intake / .577 Exhaust Lift
240 Intake / 248 Exhaust Duration at .050 – 112 Degree Lobe Separation
Ignition Timing: Initial 10-16° and Total 32-34°
Satin Aluminum Intake Manifold Included
Pro Series Ready Run Distributor Included
Holley Sniper 2 EFI System Included
Thermostat and Thermostat Housing Included
Valve Covers Included
Spark Plugs and Wires Included
EFI Fuel Pump Kit Included
Timing Cover and Oil Pan Included
Polished Front Accessory Drive Featuring Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140 Amp 1-Wire Alternator, And 7B10 Peanut Style Air Conditioning Compressor
Assembled With Complete 700R4 Automatic Transmission Package Including 2200-2400 Stall Torque Converter, Flex Plate, And Starter
Fuel Recommendation: 91+ Octane
Performance Aluminum Cylinder Heads Feature .500 Raised Port Vs OEM
Not For Use In Pollution-Controlled Vehicles
Transmission Does Not Include Speedometer Gear Or Sender Housing
Fits GM Small Block Compatible Applications

Description

HIGH-PERFORMANCE ENGINE PACKAGE. The BluePrint Engines Standard Edition Builder Series Small Block Chevy ProSeries 427 C.I. 540 HP Fuel Injected Crate Engine and 700R4 Automatic Transmission with Polished Pulley Kit is designed to deliver powerful and reliable performance. This complete engine and transmission package offers 540 horsepower and 535 ft. lbs. of torque, making it ideal for enthusiasts looking to upgrade their vehicle’s powertrain with a ready-to-install crate engine.

CONSTRUCTION AND APPEARANCE. Built with a high strength cast iron block machined in the USA, this engine features forged steel crankshaft, forged connecting rods, and forged pistons for durability and strength. The aluminum cylinder heads are precision engineered with a .500″ raised port design, while the satin aluminum intake manifold and polished front accessory drive give the assembly a clean, professional finish. Critical components such as the flexplate and distributor, along with the ignition system, are included to ensure optimized performance and reliability.

INSTALLATION. Designed to simplify installation, this package requires no major fabrication or drilling, though accurate measurement and fitment verification for accessory drive components are recommended. The package comes complete with transmission, torque converter, flexplate, and starter for a near plug-and-play installation experience.

WARRANTY. This engine comes with an industry-leading warranty of 30 months or 50,000 miles, providing peace of mind for both professional and individual installers.

APPLICATION. Fits GM Small Block compatible applications. Note that it is not designed for use in pollution-controlled vehicles and the transmission does not include a speedometer gear or sender housing, which may require additional sourcing depending on vehicle setup.

BluePrint Engines B427FK700
