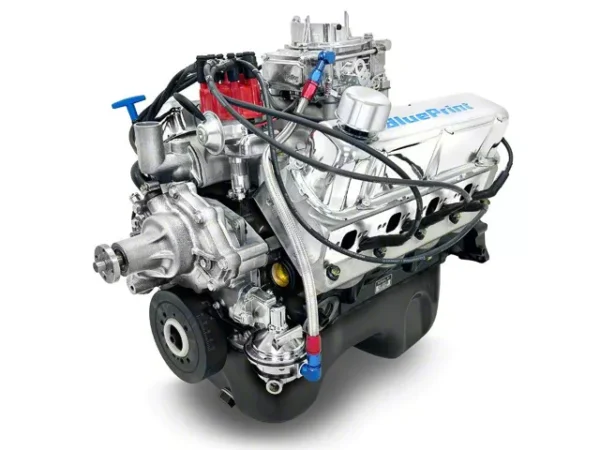

BluePrint Engines Small Block Ford 347 C.I. 415 HP Deluxe Dressed Carbureted Rear Sump Crate Engine

Compression ratio: 10.0:1
Aluminum heads
Hydraulic roller cam
BLOCK:
NEW BluePrint Engines’ high-strength cast iron block
Increased deck thickness and strength webbing
Priority main oiling
4-bolt main
1-piece rear main seal
Improved water jacket design
ROTATING ASSEMBLY:
3.400″ stroke
Forged 5.400″ connecting rods
Forged pistons
28oz external balance
CYLINDER HEADS:
BluePrint aluminum cylinder heads -HP9009
60cc chamber
2.02″ intake/1.60″ exhaust valves
190cc intake/60cc exhaust runners
CAM SPECS:
Roller cam
.543 intake / .554 exhaust
218 intake / 226 exhaust duration
@ .050 – 112-degree lobe separation
IGNITION TIMING:
10-16 degrees initial, 32-34 total
ALSO INCLUDES:
Rear sump oil pan
Valve covers
Timing cover
Carburetor
Intake
Standard rotation water pump
Spark plugs and wires
Distributor
Harmonic balancer
Thermostat and thermostat housing
NOTES:
Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
